CADDY CONVEYOR REFURBISHMENT


PROJECT: SALEM STATE UNIVERSITY

FULL ACCUMULATOR RENOVATION

BEFORE DURING AFTER

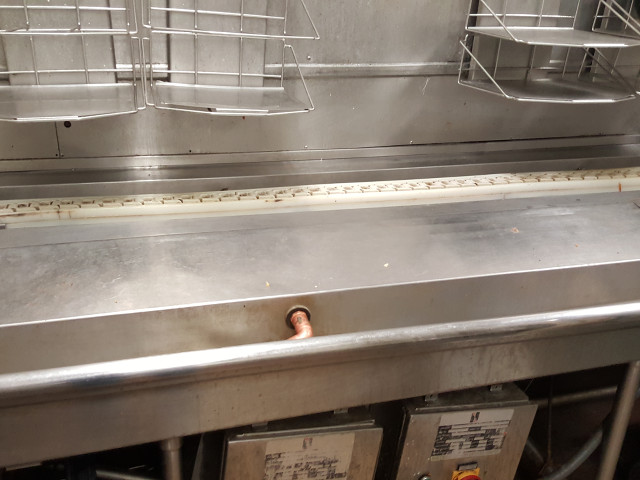

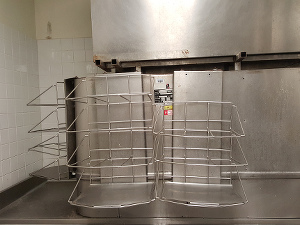

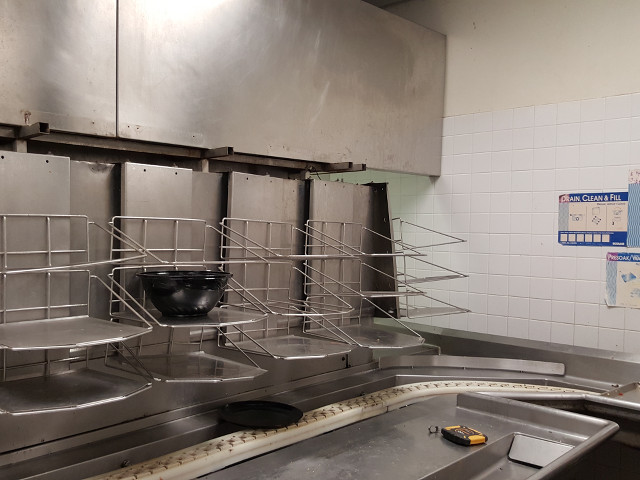

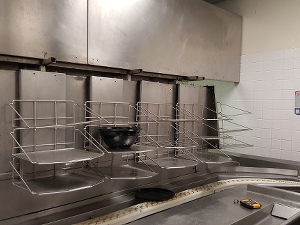

Window Buck Before

Old Unit

Old Unit and Turn

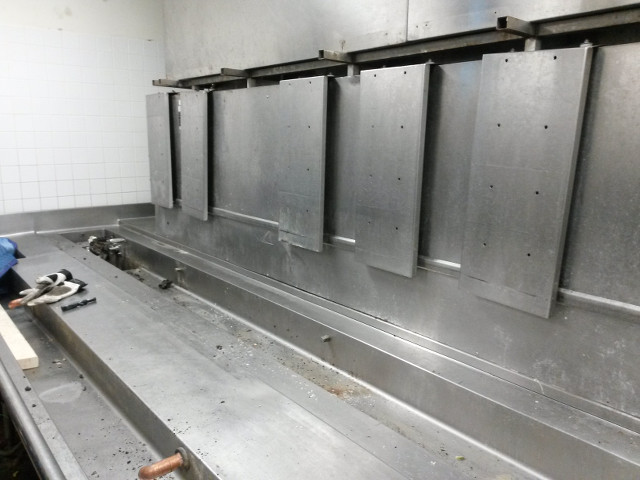

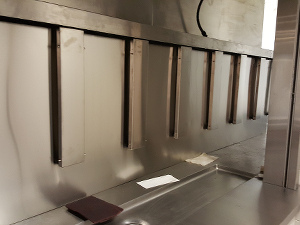

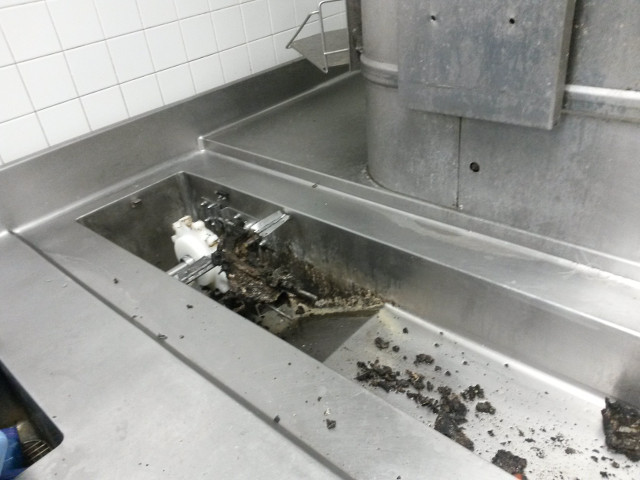

Window Buck During

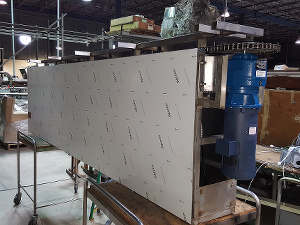

Rebuilding Body

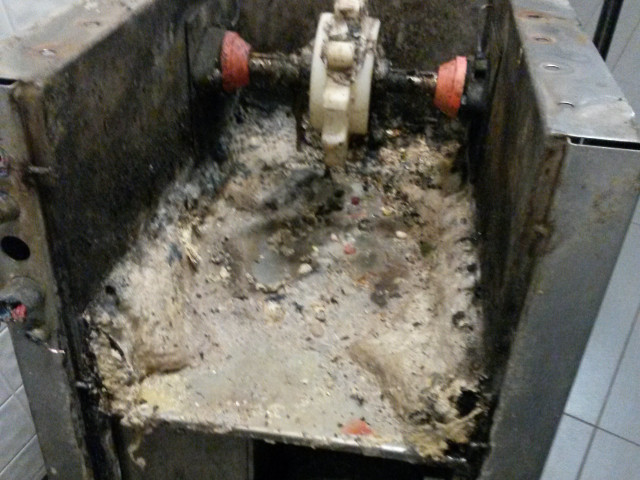

Stripping Down Unit

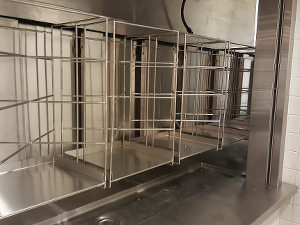

Completed Window
Buck and Eye

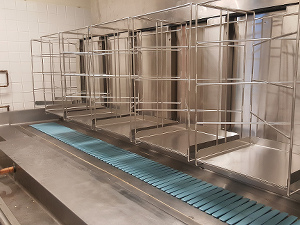

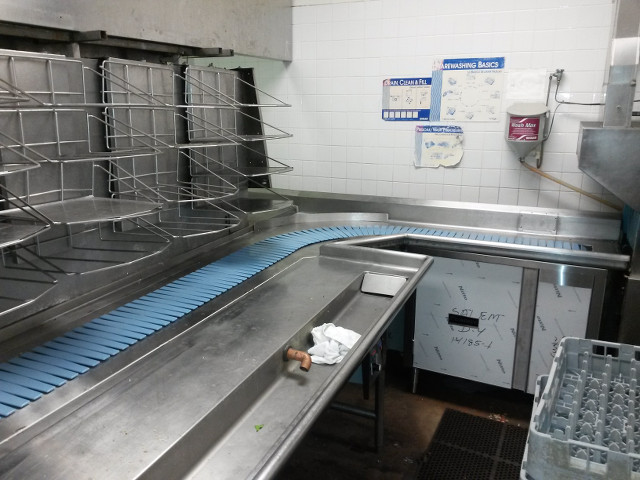

Completed Unit
and Racks

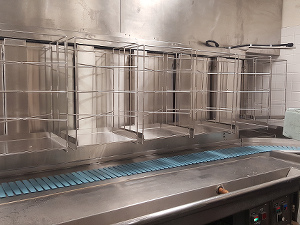

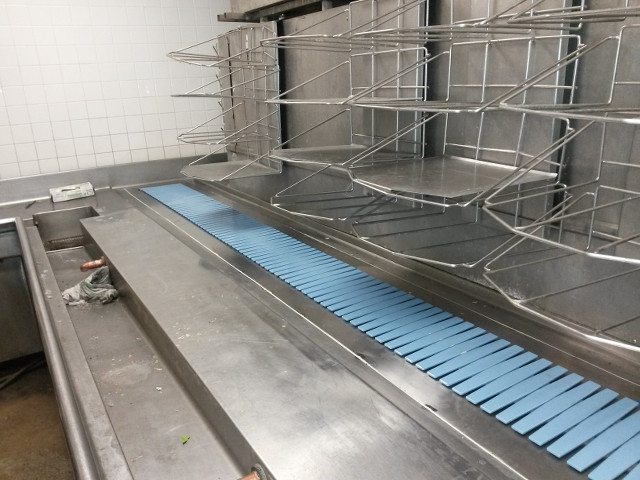

New Unit With Racks

PROJECT: MISS PORTER SCHOOL

SLAT BELT CONVEYOR RENOVATION

BEFORE DURING AFTER

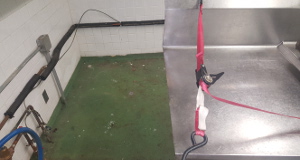

Pulling Old Unit
From Wall

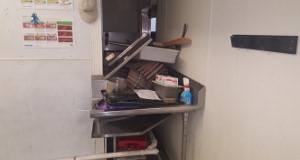

Old Tunnel From
Drop Off Window

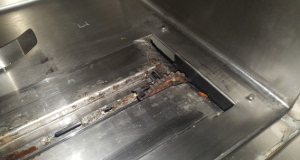

Old Drive

Old Drop Off
Window & Tail

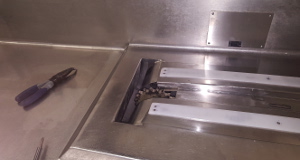

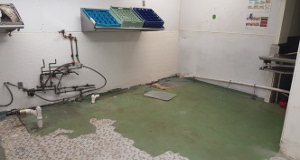

Stripped Down Room

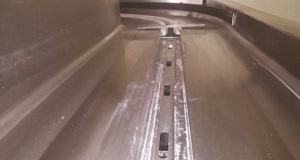

Rebedding The Tunnel

Adding New Drive,
Wear Strips, Bed & Cog

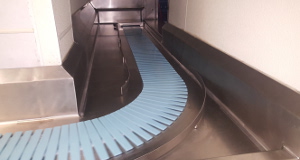

Adding The New Belt
To Drop Off Window

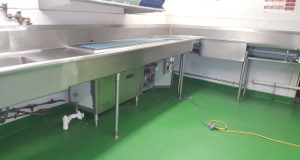

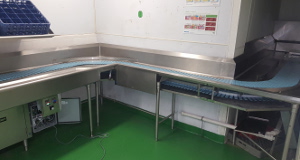

Completed Unit &
Clean Floor

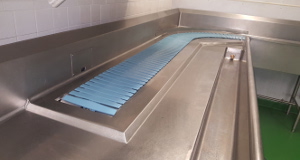

New Bed & Tunnel
From Drop Off Window

New Drive End

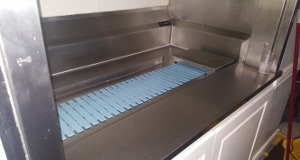

New Drop off
Window & Tail

PROJECT: SALEM STATE UNIVERSITY

KNUCKLE STYLE TO SLAT RENOVATION

BEFORE DURING AFTER

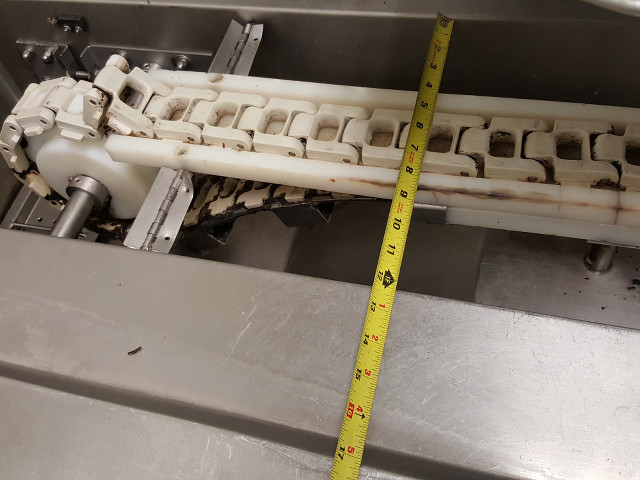

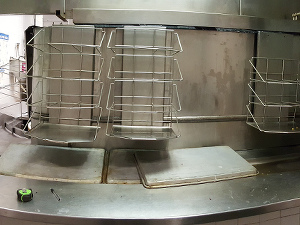

Old Knuckle Style
Conveyor

Old Knuckle Return

Old Turn

Removing Old
Knuckle Belt

Removing Old Return

Removing Old
Return & Washer

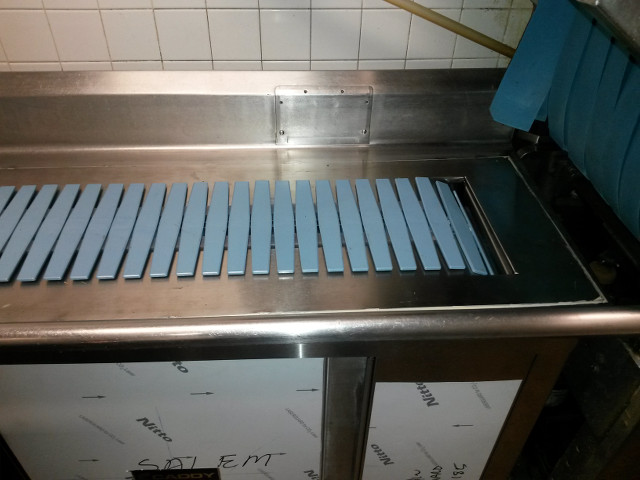

New Slat Belt
& Trough

New Return
& Silver Saver

New Slat Belt
& Washer Cabinet

PROJECT: PRAXAIR HEADQUARTERS

COMPLETE SLAT BELT & DISH ROOM RENOVATION

BEFORE DURING AFTER

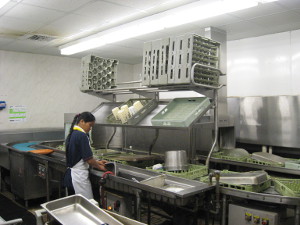

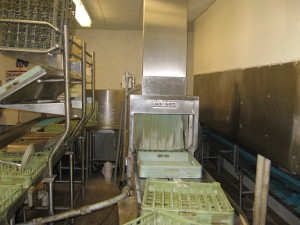

Old Sorting Area

Old Rack Type

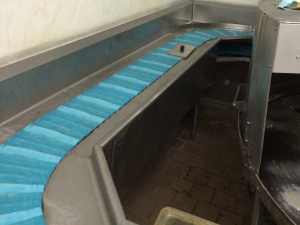

Old Belt in Corner

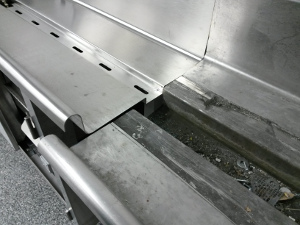

Demo

Demo Unit Removed
& Rebuild Tables

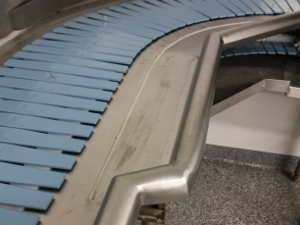

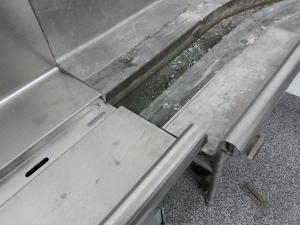

Adding Belt & Bed
in Corner

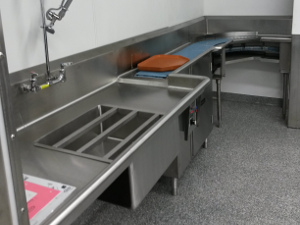

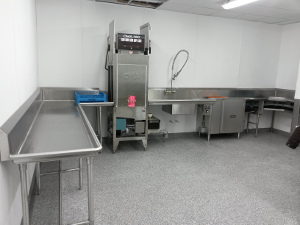

New Sorting & Scrap Area

New Corner Dish Unit

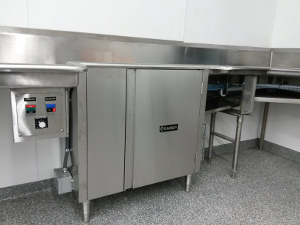

New Belt Washer
& Motor Cabinet

PROJECT: FORDHAM UNIVERSITY

COMPLETE SLAT BELT RENOVATION

BEFORE DURING AFTER

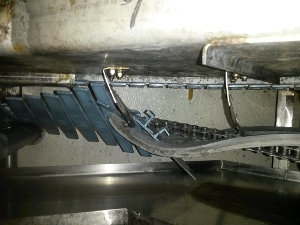

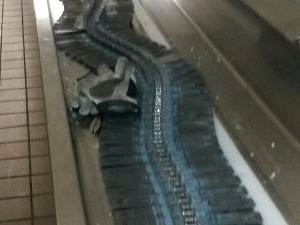

Belt Totally Off Track

Mangled Turn Components,
Rollers & Belt

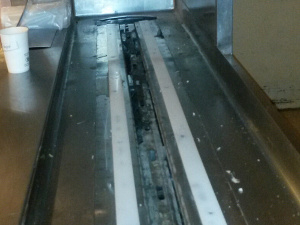

Old Drop Off Area

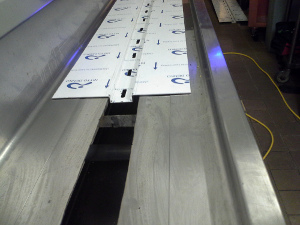

Adding New Belt

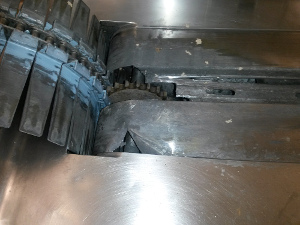

Pulling Return Cog
& Worn Stainless

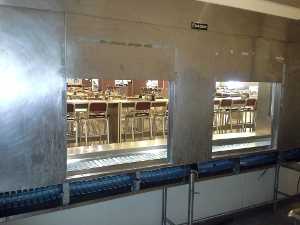

Changing Out Drop Off Area

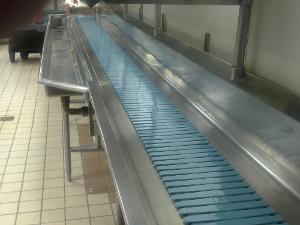

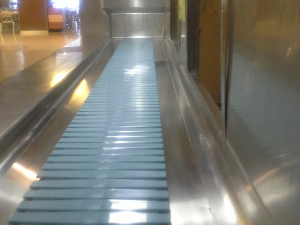

New Belt & Bed

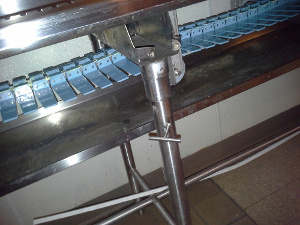

New Drip Tray & Rollers

New Drop Off Area

PROJECT: ERICSSON HEADQUARTERS

COMPLETE TRAYLESS SLAT BELT RENOVATION

BEFORE DURING AFTER

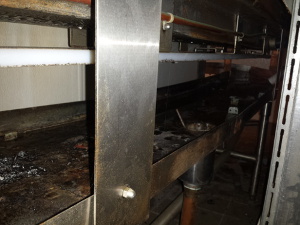

Drip Tray & Underbelly

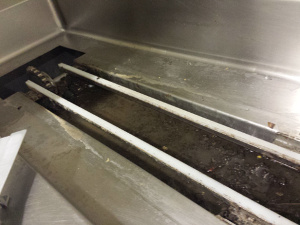

Old Belt & Return

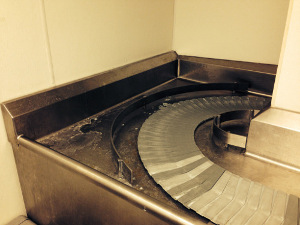

Turn From Cafeteria

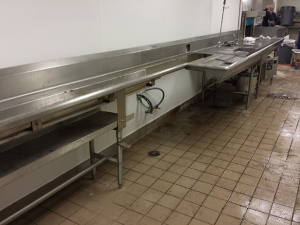

Cutting Out Housing & Drip Tray

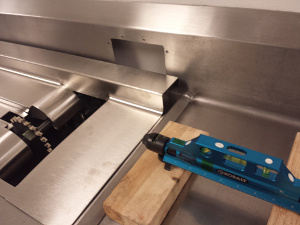

Replacing Return Cog & Bed

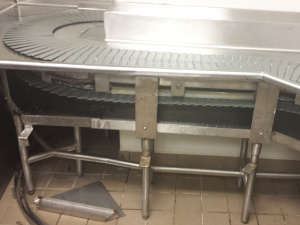

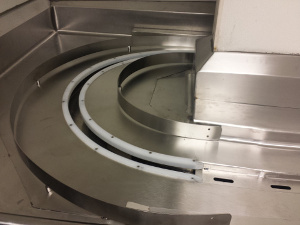

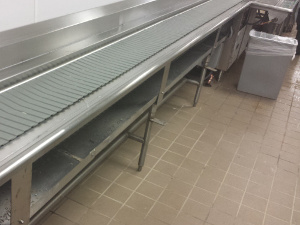

New Bed Turn

New Underbelly, Drip Tray
& Motor Housing

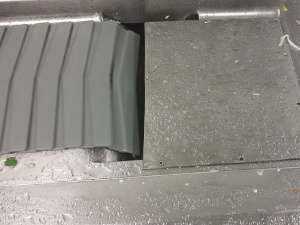

New Return & Cover

New Belt & Turn

PROJECT: MARSHALL UNIVERSITY
HARLESS DORM PHASE 2 2014

FULL SLAT BELT CONVEYOR AND PLATE DROP-OFF OVERHAUL

BEFORE DURING AFTER

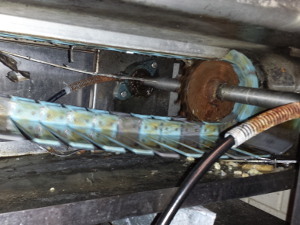

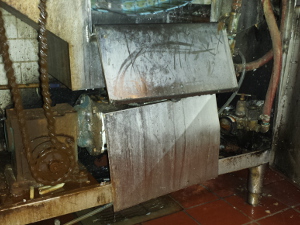

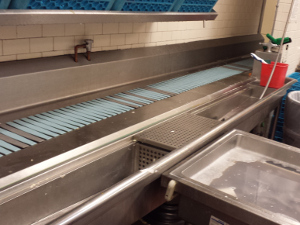

Old Motor Housing

Old Slats & Trough

Old Return

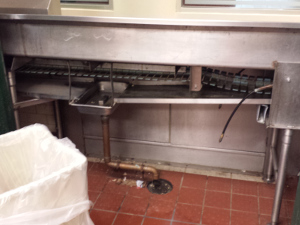

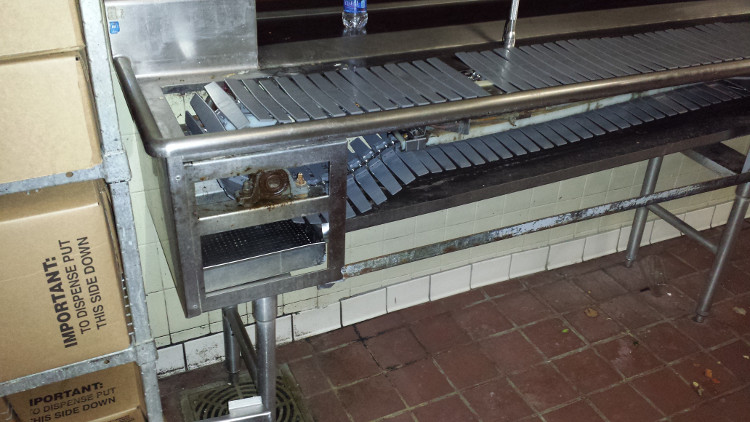

Old Drip Tray

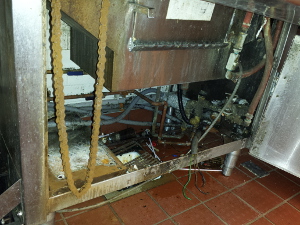

Taking Out The Old Belt Washer

Beginning The Demo

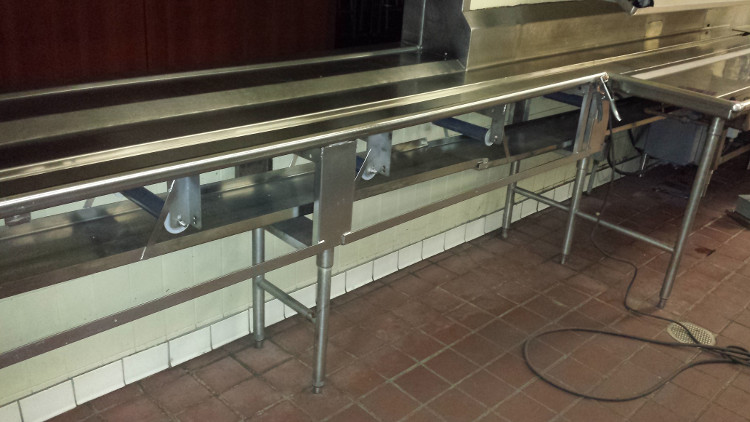

Adding The New Return

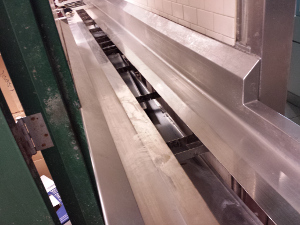

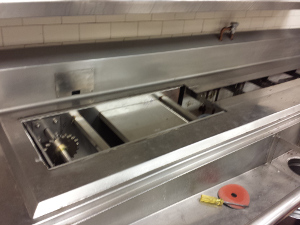

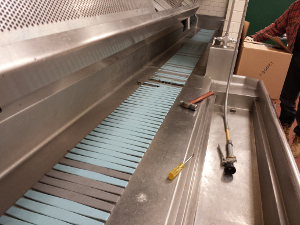

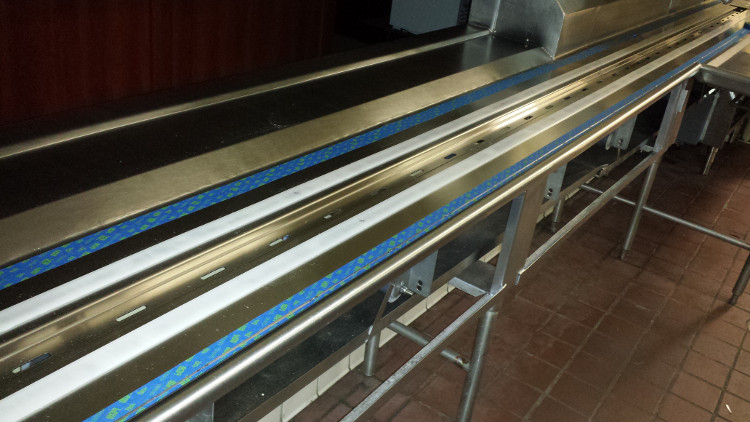

Cutting Out The Bed

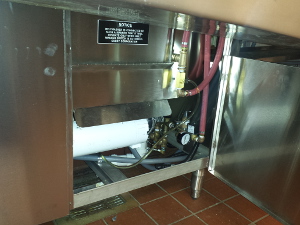

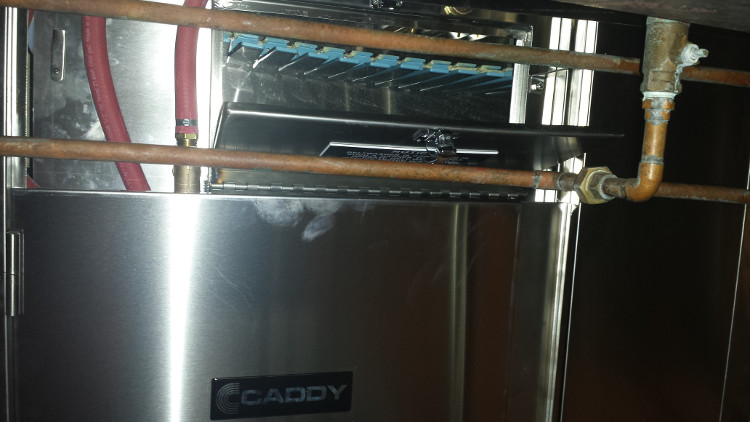

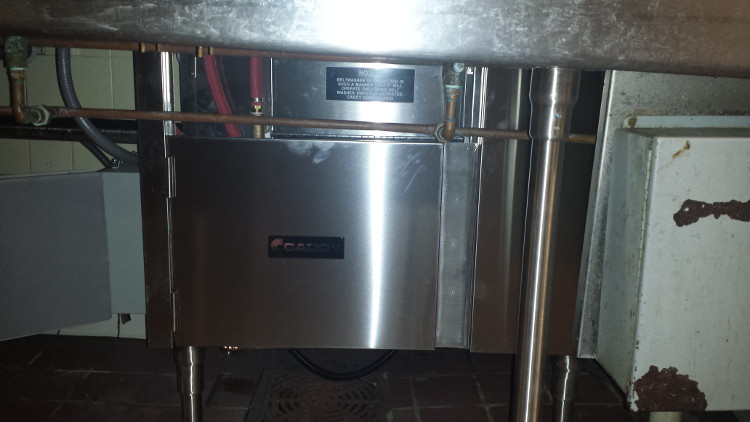

New Belt Washer

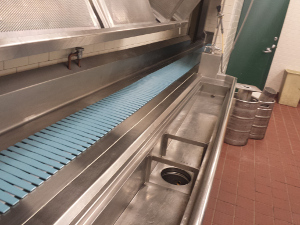

New Bed & Belt

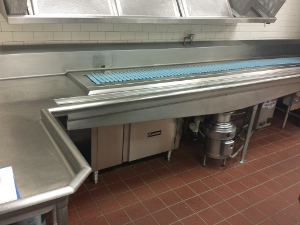

New Conveyor & Tables

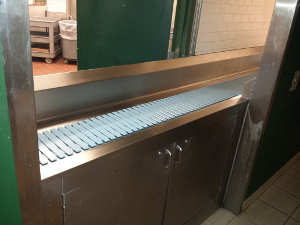

New Drop-Off Window

PROJECT: LINFIELD COLLEGE 2014

COMPLETE TRAYLESS RENOVATION

BEFORE DURING AFTER

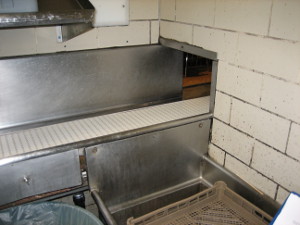

No Support Structure

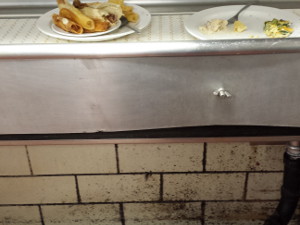

Non Food Service Belt

Dirty Return Glides

To Drop-Off Window

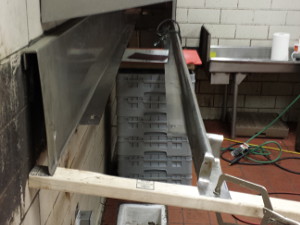

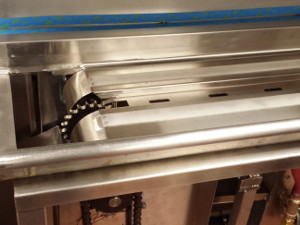

Complete Tear Down

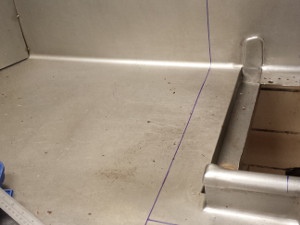

Cutting Out Dish Table

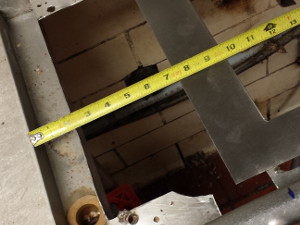

Adding Bed Support

New Bed, Gears & Belt Washers

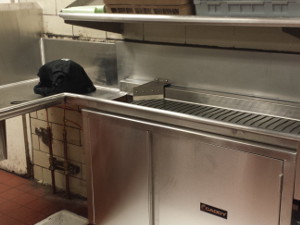

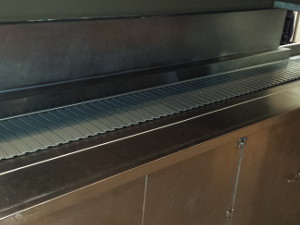

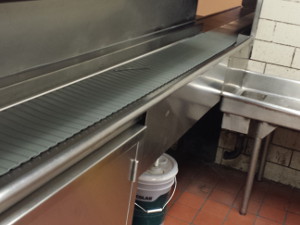

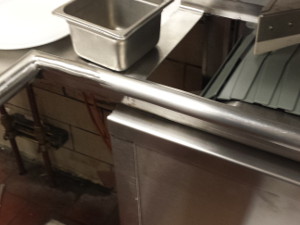

Finished Conveyor

Completed Belt To Drop-Off

New Belt Return

Drop-Off, Cafeteria Side

PROJECT: MARSHALL UNIVERSITY 2013

FULL SLAT BELT CONVEYOR OVERHAUL

BEFORE DURING AFTER

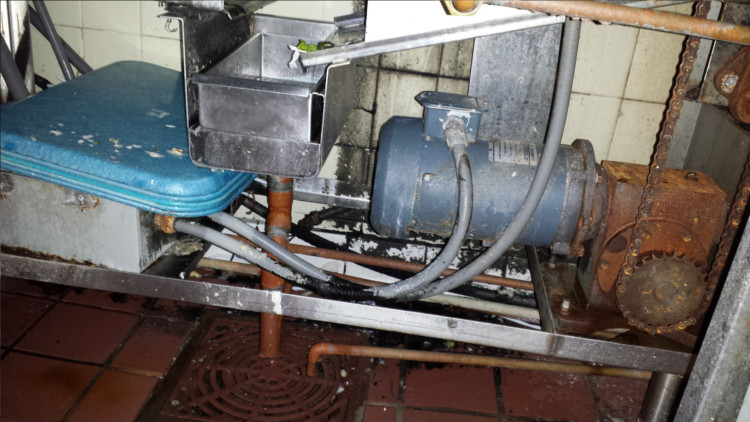

Old Motor

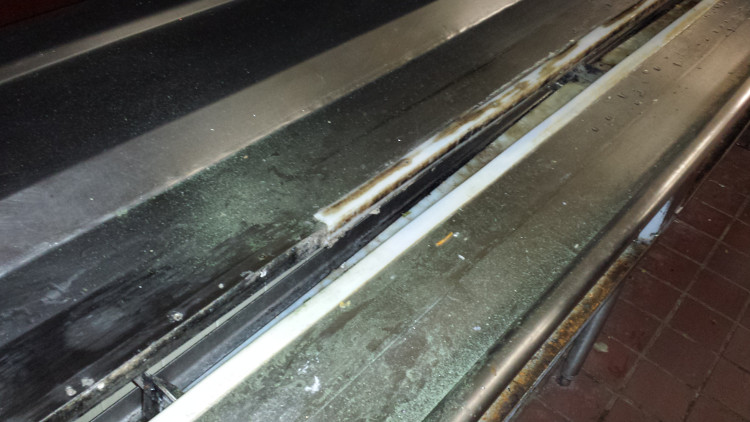

Old Bed

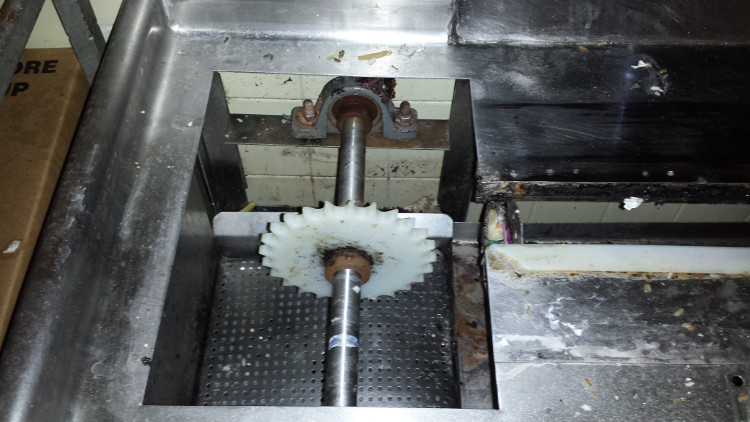

Old Return Cog

Old Belt & Return

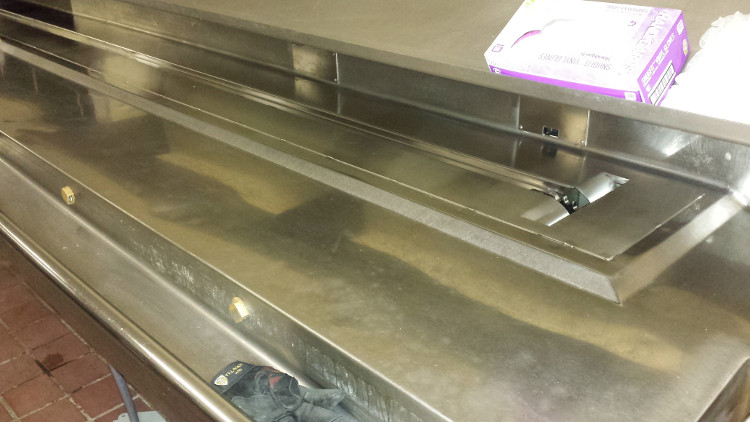

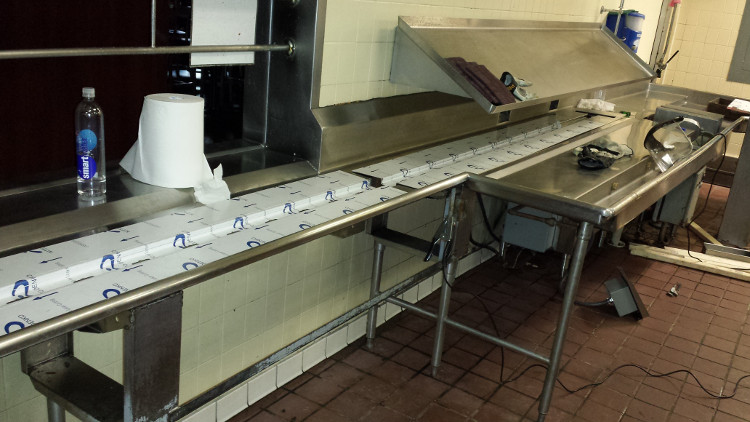

Adding New Belt

Adding Trough & Eye

Adding Drip Tray

Adding Belt Glides

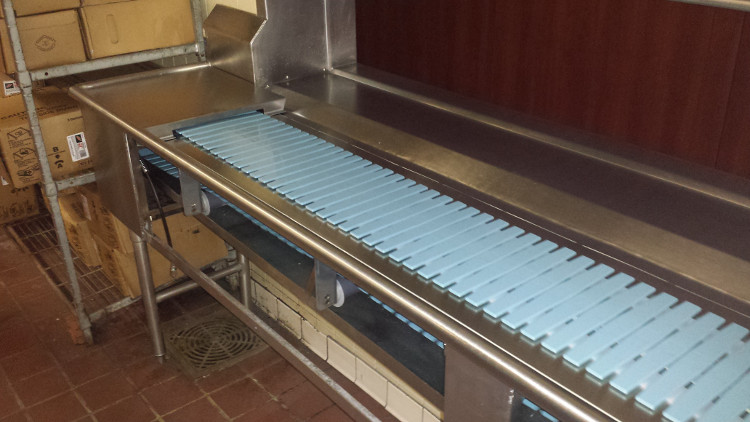

New Belt Washer

New Motor & Housing

New Return

New Belt & Window

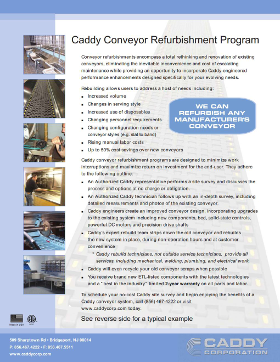

Conveyor Refurbishing Brochure Conveyor Refurbishing Flier
